If
you assumed CFTS does not build filament wound tubing you are
correct. New for 09 we have purchased several lots of tubing
remnants from some of our friends in the industry. This tubing
is sold by the length, not by the foot. Filament wound tubing
works well in applications involving torsional loads or internal
pressures. Below you will find basic details about each type
of tube. Please don't hesitate to give us a call with questions.

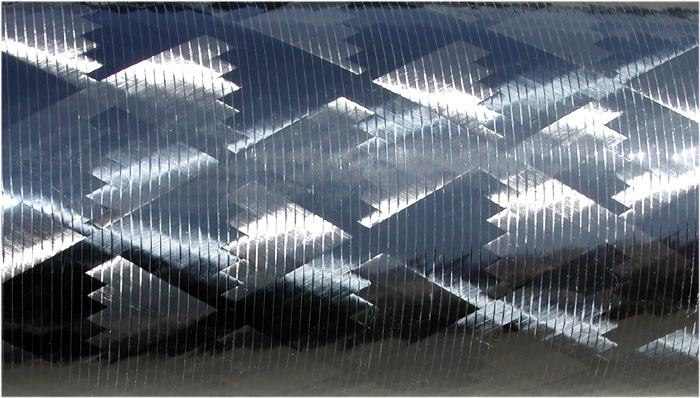

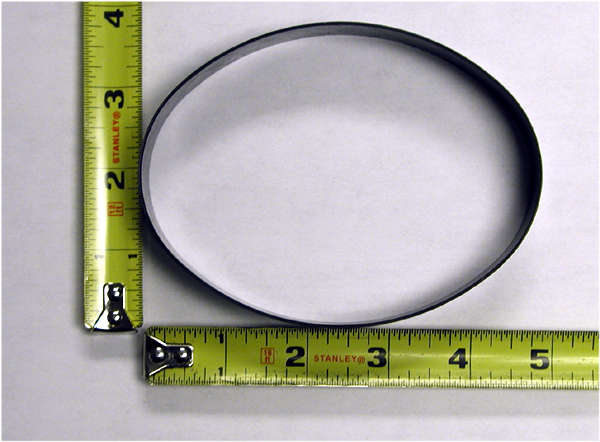

Oval High Temp Tubing
Available
in two sizes this amazing looking carbon tubing is wound using
a 350f epoxy resin system. The wall thickness is .040-.050".
It features a smooth ID and cello finish glossy outer. This
tubing is ideal for use in many applications. See close up pics
here
and here
Call for quantity pricing. Tolerances for this tubing are as
follows:
ID: +/- .005" Wall: +/- .008" Length: +/-.25"
Weight: .39 lbs/ft. for 3.58" x 4.73" and for large
ID
1 inches |
ID
2 inches |
LENGTH
inches |
|
PRODUCT
ID/DESCRIPTION |
PRICE |
BUY
NOW
|
3.58" |
4.73" |
34" |
1 |
FW35834OV
/ Filament Wound High Temp Oval / Cello Finish |
$76.50 |
|
3.58" |
4.73" |
60" |
1 |
FW35860OVL
/ Filament Wound High Temp Oval / Cello Finish |
$152.50 |
|
4.07" |
5.35" |
34" |
1 |
FW40734OVL
/ Filament Wound High Temp Oval / Cello Finish |
$85.00 |
|
4.07" |
5.35" |
52" |
1 |
FW40752OVL
/ Filament Wound High Temp Oval / Cello Finish |
$135.00 |
|
Filament Wound Carbon Tubing

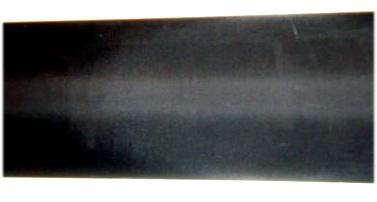

This
tube is made of 100% carbon fiber/standard temp epoxy. The winding
schedule was designed to withstand internal pressure application.
It features a smooth peel ply finish on the OD and smooth ID.
The wall thickness is .092-.095". See close up pics here Call
for quantity pricing. Tolerances for this tubing are as follows:
ID: +.005"/-.00" OD: +/- .005" Length: +/-.25"
Weight: .65 lbs/ft.
OD
inches |
ID
inches |
LENGTH
inches |
|
PRODUCT
ID/DESCRIPTION |
PRICE |
BUY
NOW
|
3.449" |
3.265" |
24" |
1 |
FW3424PP
/ Filament Wound Carbon / Peel Ply Finish |
$150.00 |
|
Filament
Wound & Wrapped Carbon Tubing

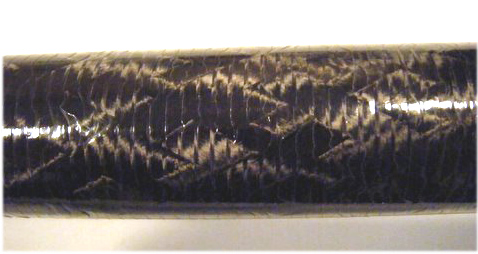

This
tube is made of 100% carbon fiber/standard temp epoxy. This
tube is laid up as a thin walled roll wrapped tube. Once cured
this tube is prepped and filament wound around the roll wrapped
core. This method of construction creates a tube that combines
the characteristics of a roll wrapped tube (bending stiffness)
and the characteristics of a filament wound tube (torsional
or internal pressure loads). The wall thickness is .147"-.157".
See close up pics here
*These
tubes have a very slight curve to them over the full 95"
length. We have discounted this tubing due to this slight
defect. These are very strong tubes! Call for quantity pricing.
Tolerances for this tubing are as follows:
ID: +.005"/-.00" OD: +/- .010" Length: +/-.25"
Weight: .45 lbs/ft.
OD
inches |
ID
inches |
LENGTH
inches |
|
PRODUCT
ID/DESCRIPTION |
PRICE |
BUY
NOW
|
1.565" |
1.260" |
47" |
1 |
FW1547WR
/ Filament Wound Carbon Wound and Wrapped / Cello Finish |
$123.50 |
|

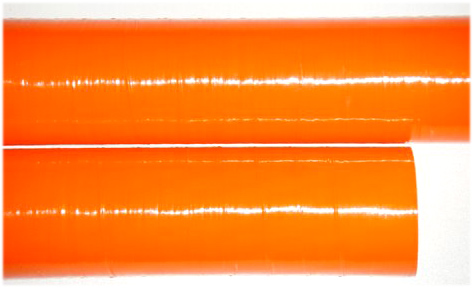

Orange
Fiberglass High Temp Tubing
The
first question you may have is why is this stuff orange? Well
the answer is "we don't know". We do know these tube
sections are filament wound with S2 glass which is stronger
and more stiff than regular E glass. The resin system is considered
high temp and will withstand temps of up to 350f. The epoxy
resin used has been colored with an orange pigment. This tubing
is only available in two lengths but we also stock natural,
and blue colored tubes. This is the first time we have ever
sold fiberglass tubing but in applications where the stiffness
to weight ratio doesn't require the use of carbon it is a great
choice. The wall thickness is .040-.045". It features a
smooth ID and cello finish glossy outer. See close up pics here
Call
for quantity pricing. Tolerances for this tubing are as follows:
ID: +.005"/-.00" OD: +/- .010" Length: +/-.25"
Weight: .16 lbs/ft.
OD
inches |
ID
inches |
LENGTH
inches |
|
PRODUCT
ID/DESCRIPTION |
PRICE |
BUY
NOW
|
1.453" |
1.370" |
22.5" |
0 |
FW1422FG
/ Filament Wound High Temp Fiberglass / Cello Finish |
$24.00 |
|
1.453" |
1.370" |
40.5" |
0 |
FW1440FG
/ Filament Wound High Temp Fiberglass / Cello Finish |
$42.00 |
|
Filament
wound remnant tubes
"Limited
Quantities Available"

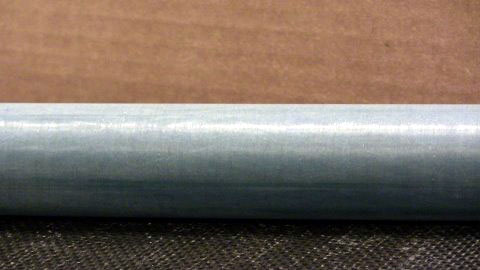

The visual appearance of the carbon tubes in this section will
vary. Some areas of the carbon tubes are oversanded
while other areas on the same tube will look like this.
OD
inches |
ID
inches |
LENGTH
inches |
|
PRODUCT
ID/DESCRIPTION |
PRICE |
BUY
NOW
|
1.490" |
1.370" |
44" |
0 |
LG149044FWGL
/ Filament Wound Fiberglass / Eggshell
Colored / Sanded Smooth (slightly discolored) |
$55.00 |
|
1.430" |
1.370" |
51.75" |
0 |
LG143051FWGL
/ Filament Wound Fiberglass / Blue Colored / Sanded
Smooth (slightly discolored) |
$35.00 |
|
